Summary of Site Survey in west Tibet and Xingiang

[ Current Summary of Site Monitoring in west Tibet ]

Monitoring Sites on Geographical Map

Map of Site monitoring sites in west China Possibly better sites in ALi area, Tibet

Comparison of Clear Sky Ratio at Tibet Sites, OAO(Japan), Hawaii, and Chile

Comparison of Clear Sky Ratio at Karasu, Oma, Gar/Ali in Tibet, OAO (Japan), Subaru Telescope/Hawaii Haleakala/Maui/Hawaii, and Chajnantor/Chile
( click here to D/L in pdf )

OAO: Users meeting
Subaru Telescope Report
Suganuma et al. 2007 PASP119.pdf
Miyata et al. 2008 SPIE_701243_1.pdf

detailed comparison of wind speed between Gar and Oma ( 300km east from Gar in west Tibet)

Weather monitoring at Oma during Jan 2009 to Jun 2009.
Weather monitoring at Gar during Jan 2013 to Jun 2013.

Daily sky clearness measured with MIR Cloud Monitor Camera at Gar/Ali, Tibet

Sky clearness at Gar in Jan, 2013
Sky clearness at Gar in Feb, 2013

Summary of Site monitoring at Oma

Summary of Instrument Layout at Ali, west Tibet Site Survey measurements at Oma during Oct 28 - 31, 2009

Strong wind observed at Gar during Winter season (Nov-Jan, 2011,2012, 2013)
==> It means Gar is NOT a suitable site for the telescopes while no wind protection be applied to the Dome/Telescope at Ali.

Strong Wind in winter season
at Gar in 2011-2013 Wind Speed at Oma in 2008-2009 Wind Speed at Subaru in 2005

Windbreaking against strong wind is very important at Ali site
Subaru Telescope criteria of Wind Speed up to 14m/sec is compared with new criteria of 20m/sec , adapted for new Dome/Telescope at Ali.

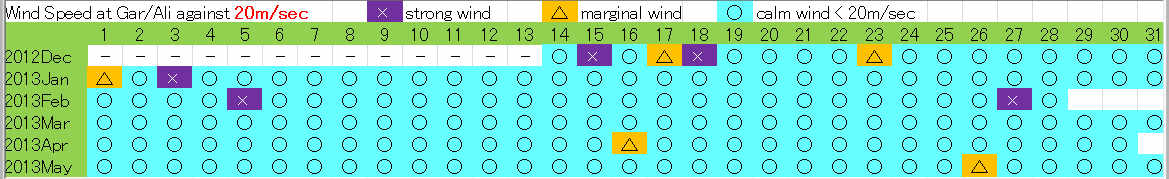

Wind distribution with description of NOT observable due to Strong (14m/sec), when Subaru Telescope criteria applied. Wind distribution with description of NOT observable due to Strong (20m/sec), when applied new Wind criteria up to 20m/sec.

WindSpeed affects available Clear Sky.

When avilability on usage of telescope is limited under wind speed less than 14m/sec, the ratio of ClearSky is down to nearly the same level at OAO (Okayama, Japan), terribly!

[back to TOP]

Short Summary on 2014-02-07

Short Summary on 2014-02-04/TS Short Summary (next; TBD)

None

[back to TOP]

Possible another candidate site near ZoZo village (2014-02-11/TS) ( see HTML-page detailed here.)

Possibly better and calm sites with lower wind in Ali area, Tibet Small hill in the basin near ZoZo Village in west Tibet

Yao san, Zhou san's PPT report on ZoZo Hill visit in Mar. 2014
(ppt 14 MB) Around View on ZoZo Hill from closest Small hill during Yao san, Zhou san's recent visit (2014 Mar).

Vertical Wind Speed Profile, simulated w/WRF at Gar and ZoZo Hill

Vertical Wind Speed profiles around midnight are shown at site locations A1, B1 at Gar. and ZoZo Hill added with high peaks #1 and #2 near ZoZo Hill.
Wind speed profiles around midnight in Jan,2010, in which high speeds are shown in upper atmosphere layers.
Wind speed upto 30,000 m above the sea, which are nearly the same at Gar and at ZoZo Hill, except the lowest air layer
