[2019/06/25 by TS]

Important commands to use IRAF on desktop
$ ds9 &
$ source ~/.bashrc
$ ecl

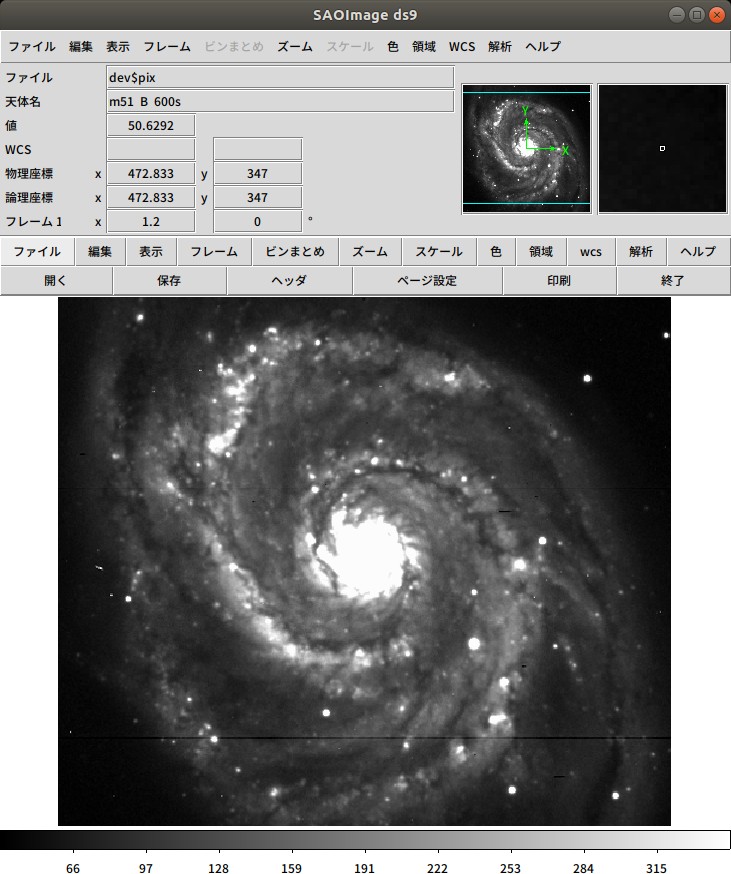

ecl> display dev$pix 1　 　　　==> ○Display on ds9 OK!!! But Headers are NG. ecl> !xpaset -p ds9 fits /mnt/diskB/00SiteSurveyData/00SiteSurveyData/000_A40M_Images_Analysed/03_Ali/2013/201301/20130101A/20130101AWMMs/CM2_Gar20130101235824CWMMs.fits 　　　==> ○Display on ds9 OK!!! and ○Headers are also OK. 　　　　　外部コマンドなので、IRAF 内部の変数 dev$ は使えない。
ecl> surface dev$pix
ecl> logout

DS9のインストール

[ http://ds9.si.edu/site/Download.html ] から、
SAOImageDS9 Version 8.0.1 (Jan 7, 2019) Linux Ubuntu 18
をダウンロードする。
　　　　　==> Q:\1ToshiPrivate\0Download\IRAF\ds9\ds9.ubuntu18.8.0.1.tar.gz
$ tar zxf ds9.ubuntu18.8.0.1.tar.gz
　　　　　==> ds (ds9.8.0.1: 0755: 25,368,970bytes)

[ https://github.com/iraf-community/iraf/releases/tag/v2.16.1+2018.11.01 ]

Source code (tar.gz)

.../iraf-2.16.1-2018.11.01.tar.gz

$ tar zxf /.../iraf-2.16.1-2018.11.01.tar.gz

# apt instalkl ibcurl4-openssl-dev libexpat-dev libreadline-dev gcc make flex

$ ./install


==================================== IRAF v2.16 Installation ==================================== Welcome to the IRAF installation script. This script will first prompt you for several needed path names. Once the installation is complete, you will be allowed to do some minimal system configuration. For each prompt: hit to accept the default value, 'q' to quit, or 'help' or '?' to print an explanation of the prompt. ======================================================================== ===================== Query for System Settings ====================== ======================================================================== New iraf root directory (/home/sasaki/iraf/iraf-2.16.1-2018.11.01): Default root image storage directory (/home/sasaki/.iraf/imdir): Default root cache directory (/home/sasaki/.iraf/cache): Local unix commands directory (/home/sasaki/.iraf/bin/): Terminal types: xgterm, xtermjh, xterm, etc. Enter default terminal type (xgterm): ======================================================================== ===================== Verifying System Settings ====================== ======================================================================== Hostname = sasaki-Z220 OS version = Linux 4.15.0-52-generic Architecture = linux64 HSI arch = linux64 Old iraf root = /home/sasaki/0Downloads/iraf-2.16.1-2018.11.01 New iraf root = /home/sasaki/iraf/iraf-2.16.1-2018.11.01 Old imdir = /home/sasaki/.iraf/imdir New imdir = /home/sasaki/.iraf/imdir Old cache = /home/sasaki/.iraf/cache New cache = /home/sasaki/.iraf/cache Local bin dir = /home/sasaki/.iraf/bin/ Proceed with installation? (yes): ======================================================================== ========================= Begin Installation ========================= ======================================================================== Checking for existing commands directory... [ OK ] Editing Paths ------------- Editing the user login/rc files ... [ OK ] Editing iraf/imdir/cache paths into system files ... [ OK ] Setting mode for $imdir to 0777 [ OK ] Checking cache permissions ... [ OK ] Creating File Links ------------------- Creating symlink ... [ OK ] Marking system architecture ... [ OK ] Creating iraf command links in local bin dir ... [ OK ] Marking system update time hlib$utime ... [ OK ] Creating Graphics Device Files ------------------------------ Creating $HOME/.imtoolrc link ... [ OK ] Creating X11IRAF links ... [ OK ] Initializing Login Files ------------------------ Creating global login.cl and uparm directory .... [ OK ] ======================================================================== Congratulations! IRAF has been successfully installed on this system. ======================================================================== To begin using IRAF you can simply type % source ~/.login % cl From any directory to use the global login files created in the /home/sasaki/.iraf directory. If you wish to have a login.cl/uparm that is specific to a particular directory, you will need to type % mkiraf # create a login.cl file (needed once) % cl # start IRAF Additional user information can be found at the iraf community web site: https://iraf-community.github.io Please create an issue on https://github.com/iraf-community/iraf/issues in case of problems. ======================================================================== ================ Installation Completed With No Errors =============== ========================================================================

$ make linux64    # on ~/iraf/iraf-2.16.1-2018.11.01/
$ make sysgen 2>&1 | tee build.log    # on ~/iraf/iraf-2.16.1-2018.11.01/
==> かなり時間がかかります。
[ GitHub_install_Log_index.html ] その詳細はビルドログを参照ください。

このとき、.bashrcにpathが書き込まれるので.bashrcを再読み込みするか、新しいターミナルを開きます。
$ less ~/.bashrc
$ source ~/.bashrc
IRAFの環境を mkiraf で設定します。
$ mkiraf
login.cl ができ、cl or ecl でIRAFが立ち上がります。
$ pwd
/home/sasaki

$ mkiraf -- creating a new uparm directory Terminal types: xgterm,xtermjh,xterm,etc. Enter terminal type (xgterm): A new LOGIN.CL file has been created in the current directory. You may wish to review and edit this file to change the defaults.

$ emacs ~/login.cl

#set editor = vi
set editor = emacs

$ source .bashrc




$ ds9 & #ds9の起動
$ ecl NOAO/IRAF community V2.16.1+ snapshot This product includes results achieved by the IRAF64 project in 2006- 2009 directed by Chisato Yamauchi (C-SODA/ISAS/JAXA). Welcome to IRAF. To list the available commands, type ? or ??. To get detailed information about a command, type `help '. To run a command or load a package, type its name. Type `bye' to exit a package, or `logout' to get out of the CL. Visit http://github.com/iraf-community/iraf/issues to report problems. The following commands or packages are currently defined: dataio. images. lists. obsolete. proto. system. dbms. language. noao. plot. softools. utilities. ecl>
ecl> display dev$pix 1　 　　　==> ○Display on ds9 OK!!! But Headers are NG. ecl> !xpaset -p ds9 fits /mnt/diskB/00SiteSurveyData/00SiteSurveyData/000_A40M_Images_Analysed/03_Ali/2013/201301/20130101A/20130101AWMMs/CM2_Gar20130101235824CWMMs.fits 　　　==> ○Display on ds9 OK!!! and ○Headers are also OK.

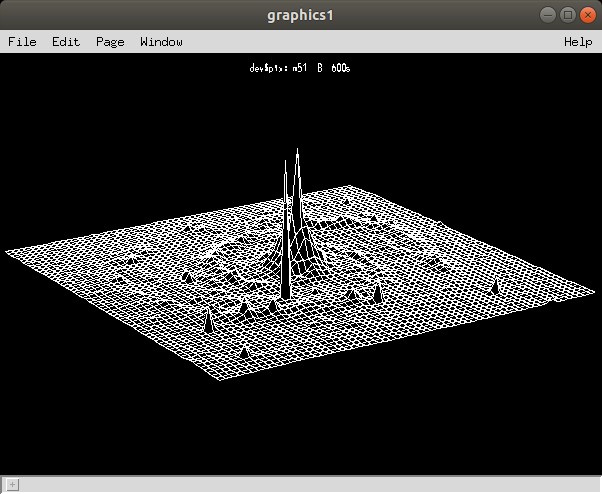

ecl> surface dev$pix Image will be block averaged by 8 in x and 8 in y
ecl> list extern average lintran rgcursor table unique columns raverage rimcursor tokens words
ecl> logout




---

External packages　は利用できるのか？
[https://iraf-community.github.io/external]
によると、External packagesに関しては、


Several external packages are maintained in repositories within the iraf-community organization on github: fitsutil - Utilities for single and multiple FITS files sptable - IRAF package for tabular spectra mscred - Mosaic CCD reduction package nfextern - General IR reductions/NEWFIRM package vo - Virtual Observatory package and vocl from the original v2.16.1 release mscdb - MSCRED support files xdimsum - IR reductions ucsclris - UCSC LRIS mask making guiapps - Prototype GUI application deitab - DEIMOS tables package adccdrom - Astronomical Data Center (ADC) CD-ROM tools ctio - CTIO tools Please note that the repositories only contain the source code and often did not receive an update yet. If there are more packages that should be maintained in the repositories please contact us to get them included.



StSCI をしらべると、

[ http://www.stsci.edu/institute/software_hardware/stsdas ]
Although STSDAS and TABLES are still distributed through Astroconda (http://astroconda.readthedocs.io/en/latest/), we only offer partial support for these packages.
よって、 StSDAS/Tables のためには、AstroConda を用いること。

see reference commands available on UNIX
　　　 UNIX_commands.html



install IRAF

Anaconda Install

GitHub IRAF install

TibetData Analysis
