Analysis Software for Site Survey |
based on CloudMon analysis package on 2007-05-12/2009-05-06 by T. Sasaki | |
Figures are in | |
C:\0WORK\TibetSiteSurvey\0FLIRA40M_IRCamera\0ControlSoftware\MonitorImages |
CloudMon | to control and data acquisition software
Frame Data of 240 x 320 is saved in FITS file | |
ShowDS9 | to show frame data to DS9 display | |
MeasureArea | to measure area according to area file | |
GetBG | to create flat-field frame or sky background frame out of multiple frames selected randomly. | |
AnalysisOrganizer | to organize analysis operations by creating sequential operation files and execute according the sequential operation file. | |
Arithmetic | for arithmetic operation of frame
- Sum/Mean of frames to save target file ( nealy the same as GetBG ) - Subtract reference(sky-background) file from frames - Devide frames using refernce file - FlatFielding frames using refernce(flat-field) file - Mask pixels in frames using mask area file | |
Histogram | create histogram from flatfielded-BGsubtracted-Masked frames. | |
ToDo | ||
Logger | to collect log message from each software (TBD) |
AnalysisFriOwl | Originated 2008-01-19 | Latest 2009-10-29 | |||||||
Function | |||||||||
Figures | |||||||||
AnalysisOrganaizer | Originated 2007-06-03 | Latest 2009-03-07 | |||||||
Function | Prepare and execute the sequencial operation of Analysis of CloudMon sky images | ||||||||
Figures | |||||||||
AnalysisSatelliteCloud | Originated 2008-01-03 | Latest 2009-04-02 | |||||||
Function | |||||||||
Figures | |||||||||
Arithmetic | Originated 2007-05-01 | Latest 2008-08-23 | |||||||
Function | |||||||||
Figures | |||||||||
ArrangeFriOWL | Originated 2008-02-19 | Latest 2008-10-21 | |||||||
Function | |||||||||
Figures | |||||||||
CloudMon | Originated 2006-08-01 | latest 2008-07-21 | |||||||
Function | Control CloudMon IR imager to take sky images in FITS format CloudMonOperationManual.html | ||||||||
Operation |
| ||||||||
Figures | |||||||||
ContCT2Dlg | Originated 2007-08-07 | Latest 2008-07-20 | |||||||
Function | Control and data taking of CT2 sensors detailed manual in HTML (Japanese/日本語) | ||||||||
Operation |
| ||||||||
Figures | |||||||||
CT2Graph | Originated 2007-08-14 | Latest 2008-08-22 | |||||||
Function | |||||||||
Figures | |||||||||

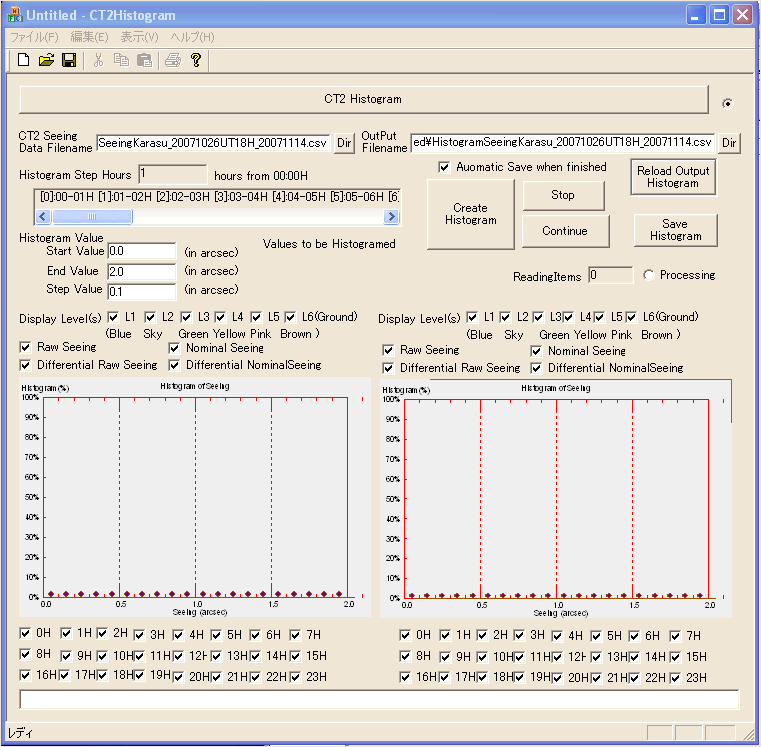

CT2Histogram | Originated 2008-08-25 | Latest 2008-08-28 | |||||||
Function | |||||||||
Figures | |||||||||

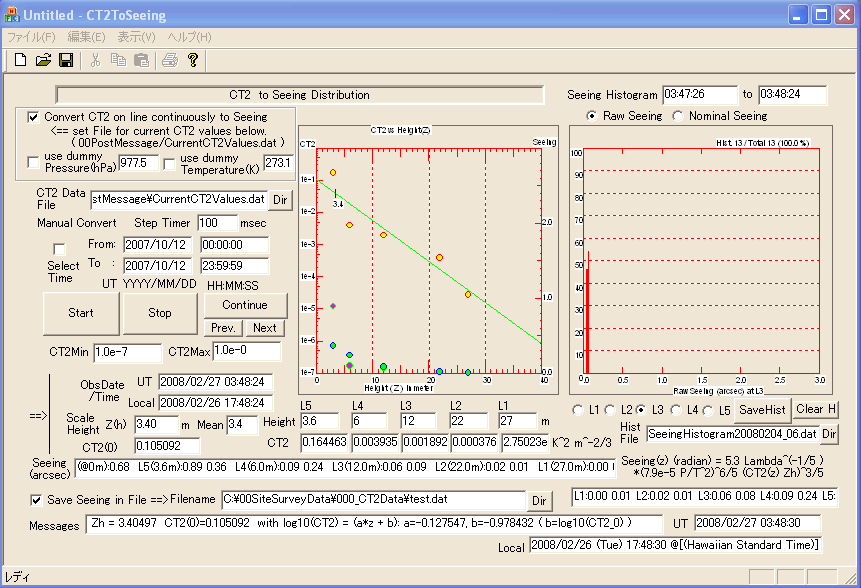

CT2ToSeeing | Originated 2007-10-12 | Latest 2008-08-20 | |||||||
Function | |||||||||
Figures | |||||||||
DisplayLog | Originated 2007-09-20 | Latest 2008-08-21 | |||||||
Function | make log in graphics w/ log reading from gathering log directory, say, C:\00SiteSurveyData\00DisplayLog\ w/ output in PS | ||||||||
Figures | |||||||||
DustCounter | Originated 2008-08-28 | Latest 2008-09-11 | |||||||
Function | |||||||||
Operation |
| ||||||||
Figures | |||||||||
DustStatistics | Originated 2008-09-12 | Latest | |||||||
Function | |||||||||
Figures | |||||||||
GetBG | Originated 2007-04-28 | Latest 2008-05-10 | |||||||
Function | get background image for flat-fielding from uniformly-illuminated images for CloudMon | ||||||||
Figures | |||||||||
Hartmann test | Originated 2007-05-06 | Latest 2008-04-28 | |||||||
Function | |||||||||
Figures | |||||||||
Histogram | Originated 2007-05-06 | Latest 2008-04-28 | |||||||
Function | |||||||||
Figures | |||||||||
MakeAnimation | Originated 2006-12-09 | Latest 2009-05-05 | |||||||
Function | |||||||||
Figures | |||||||||
MeasureArea | Originated 2007-04-24 | Latest 2008-05-09 | |||||||
Function | |||||||||
Figures | |||||||||
PlotCloudProfile | Originated 2008-05-10 | Latest | |||||||
Function | |||||||||
Figures | PlotCloudProfile.gif (NOT completed) | ||||||||
PlotWatchPort | Originated 2009-04-14 | latest 2009-04-27 | |||||||
Function | To read WatchPort Combo-sensors's Temp/RH files to draw the data w/ real-time file reading to monitor the currnt Temp/RH w/ output EXCEL csv file | ||||||||
Operation |
| ||||||||
Figures | |||||||||
ProcessMonitor | Originated 2008-04-26 | Latest 2008-06-22 | |||||||
Functions | |||||||||
Figures | |||||||||
ShowDS9 | Originated 2007-03-22 | Latest 2007-08-31 | |||||||
Function | |||||||||
Figures | |||||||||
SubtractSky | Originated 2008-05-10 | not used? | |||||||
Function | |||||||||
Figures | |||||||||
WeatherMonitor | Originated 2008-06-09 | Latest 2008-11-11 | |||||||
Functions | communicate with VAISALA Weather station WX510 to get Temp/RH/Wind speed/direction/AirPressure/Precipitation(Rain,Hail) | ||||||||
Operation |
| ||||||||
Figures |
| |||||||
original raw images | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /000_A40M_Images | /00_Mitaka | /2007 /2008 /2009 /2010 |
/yyyymm | /yyyymmdd | |
/01_Karasu | |||||||
/02_Oma | |||||||
| |||||||
Analysed images | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /000_A40M_Images_Analysed | /00_Mitaka | /2007 /2008 /2009 /2010 |
/yyyymm | /yyyymmddA
("A" added) |
/yyyymmddF(*) |
/01_Karasu | |||||||
/02_Oma | |||||||
| |||||||
Falt-Fielding images | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /02FlatField | 20070129Flat_CM1.fits | NSTACKF = 26 / Frames used for stacking STACKDAT= '2007/08/29' / Creation Date of Stacked Frame | |||
20070129Flat_CM2.fits | NSTACKF = 193 / Frames used for stacking STACKDAT= '2010/01/25' / Creation Date of Stacked Frame | ||||||
| |||||||
Sky-Frame images | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /03SkyFrame | |||||
| |||||||
mask images to be masked | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /04MaskFrame | |||||
| |||||||
CSV files which lists BAD frames | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /BadFile | |||||
| |||||||
Sequential procedure files | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /SeqFile | |||||
| |||||||
Histogram result files | |||||||
| |||||||
C: O: Z: |
/00SiteSurveyData | /05Histogram | |||||
|
*) | yyyymmddF | = | flat-fielded images |
yyyymmddFS | = | flat-fielded, Sky-Subtracted images | |
yyyymmddFSM | = | flat-fielded, Sky-Subtracted, Masked images | |
yyyymmddFSMs | = | flat-fielded, Sky-Subtracted, Masked, Solar-Position Masked images |
