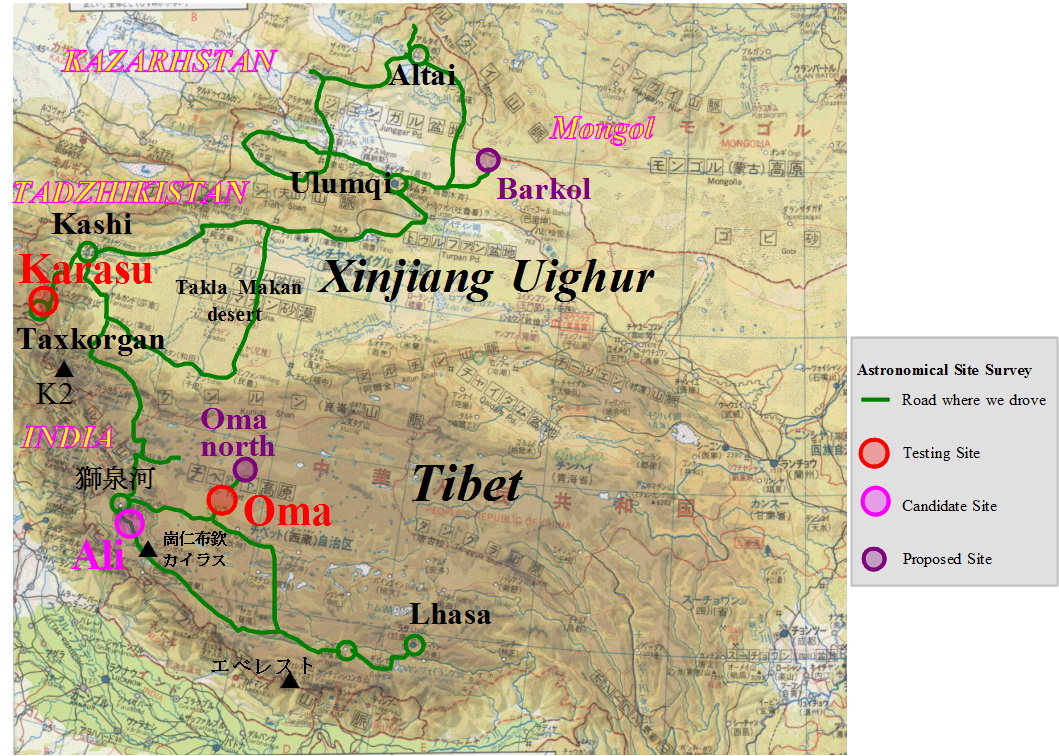

Site map of Site Monitoring in west China, starting in 2007 to the present. |

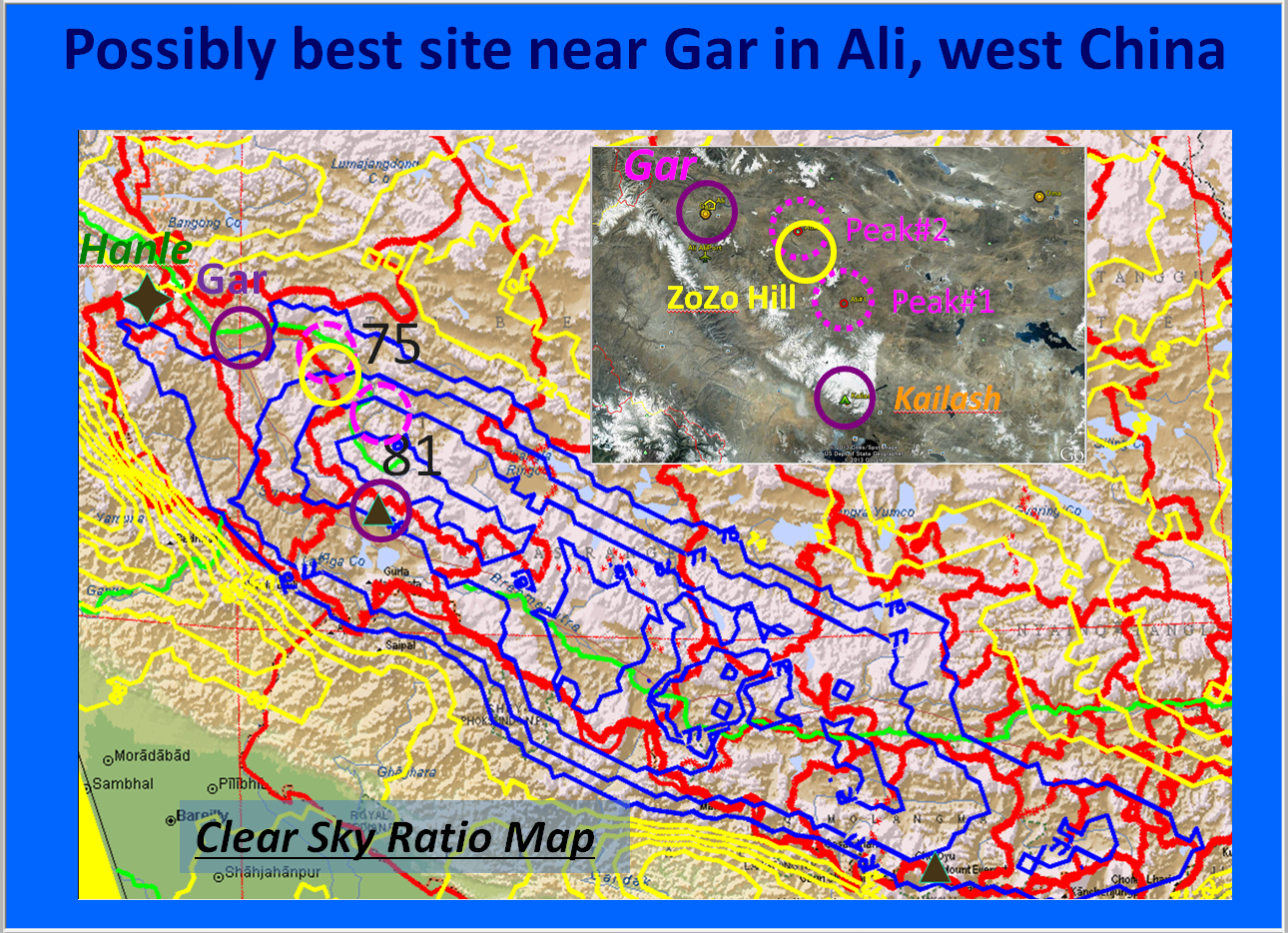

Ali (5036m) and ZoZo Hill(4619m), possibly better sites in Ali area, Tibet |
||||||||||

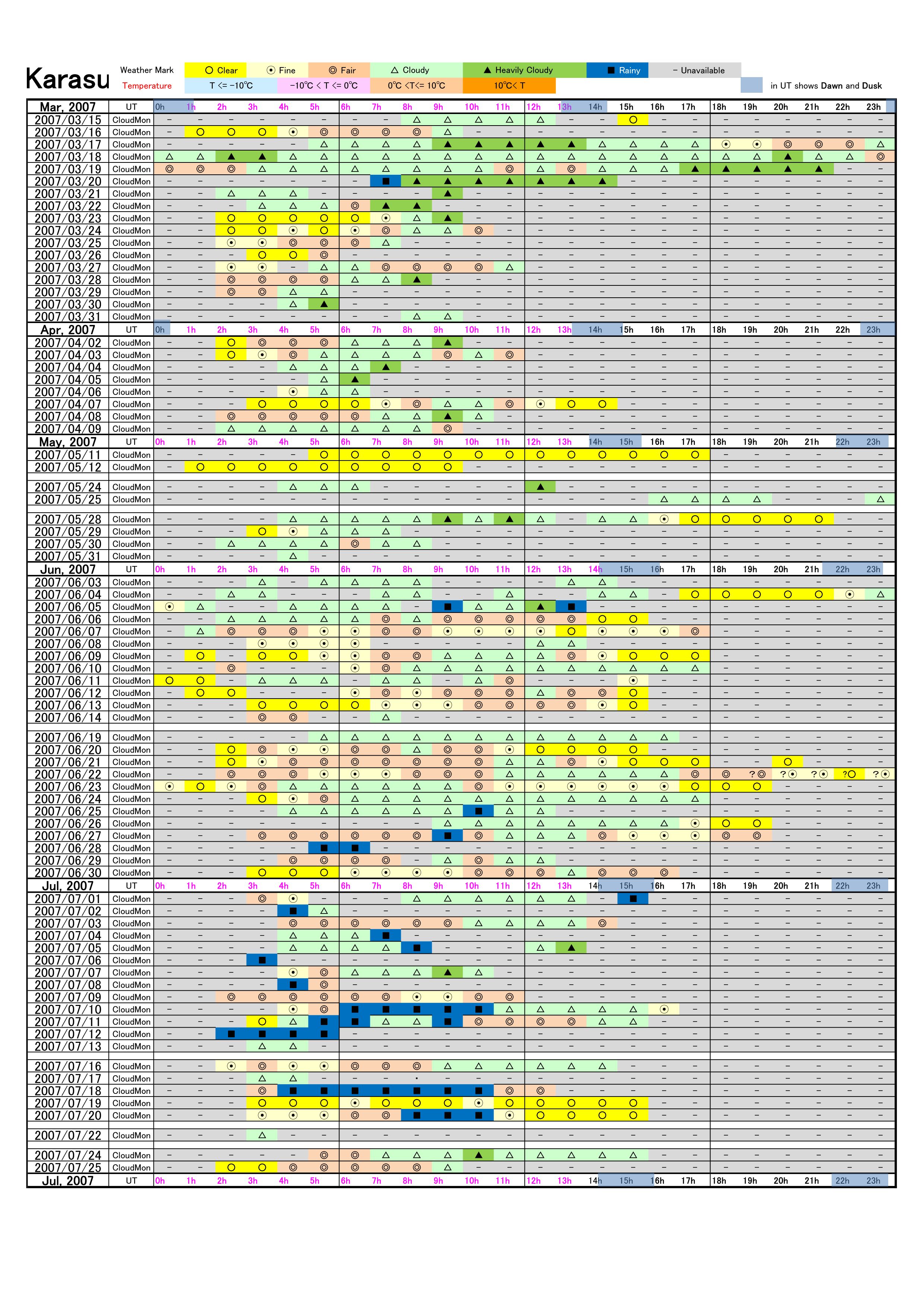

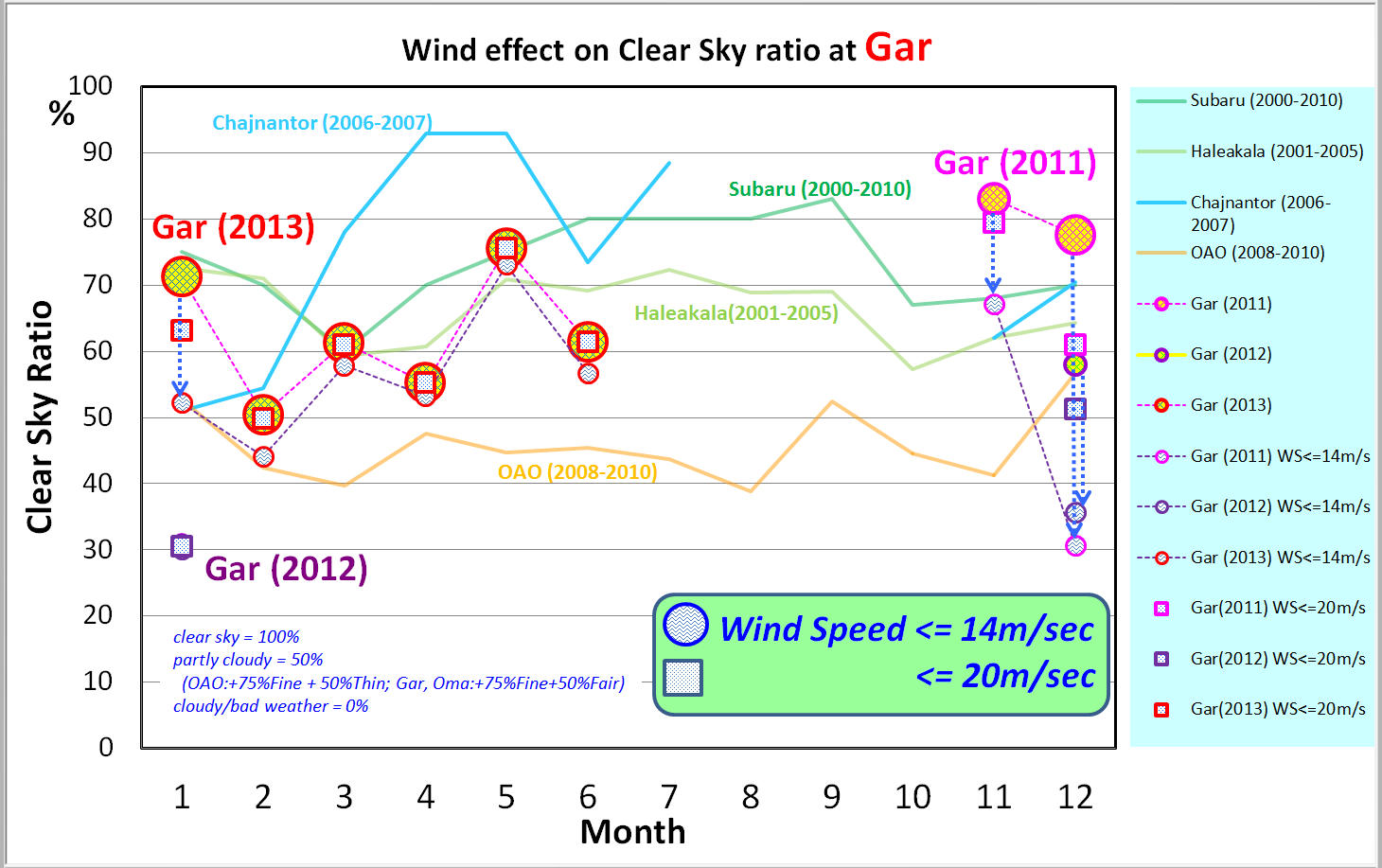

Comparison of Clear Sky Ratio at Karasu, Oma, Ali in Tibet, OAO (Japan), Subaru Telescope/Hawaii Haleakala/Maui/Hawaii, and Chajnantor/Chile ( click here to D/L in pdf ) |
|
||||||||||

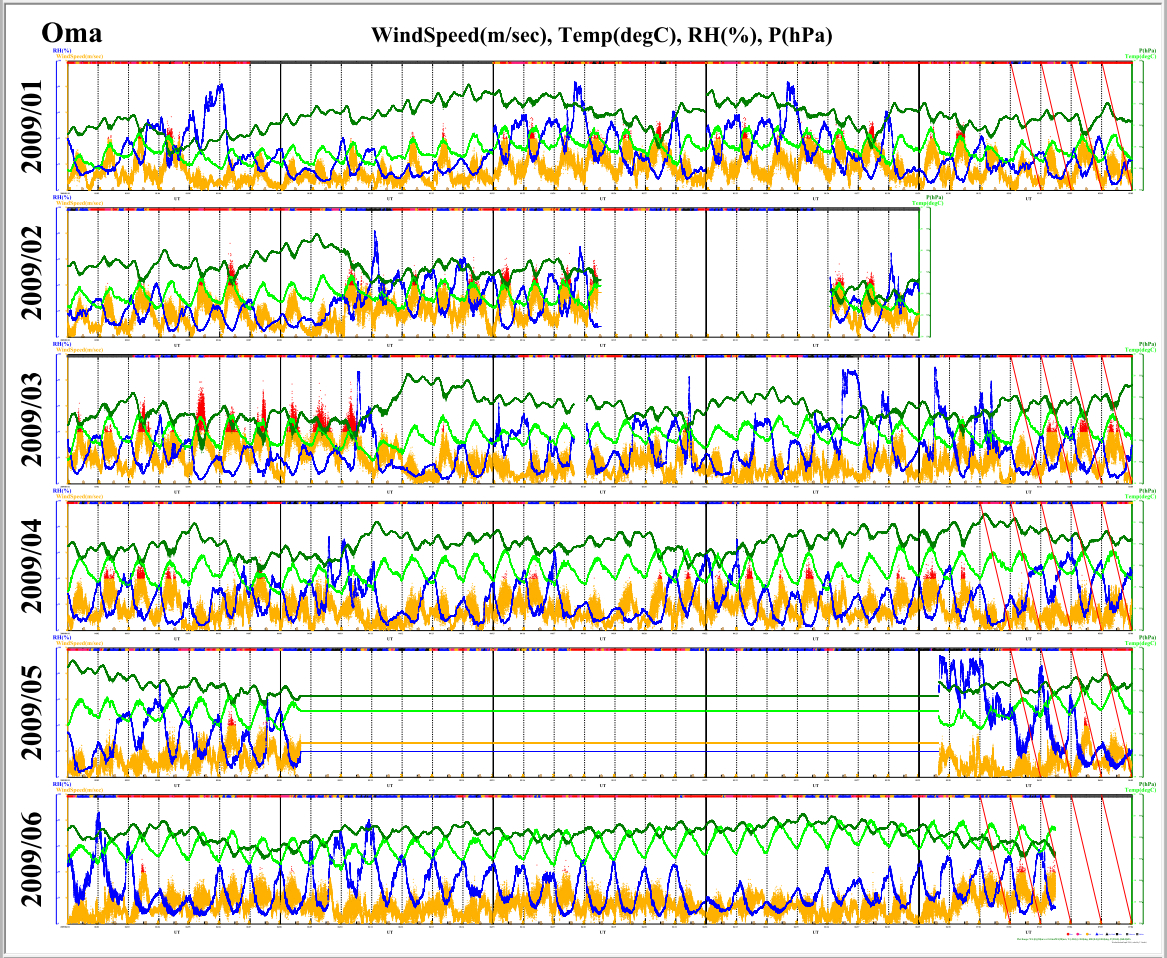

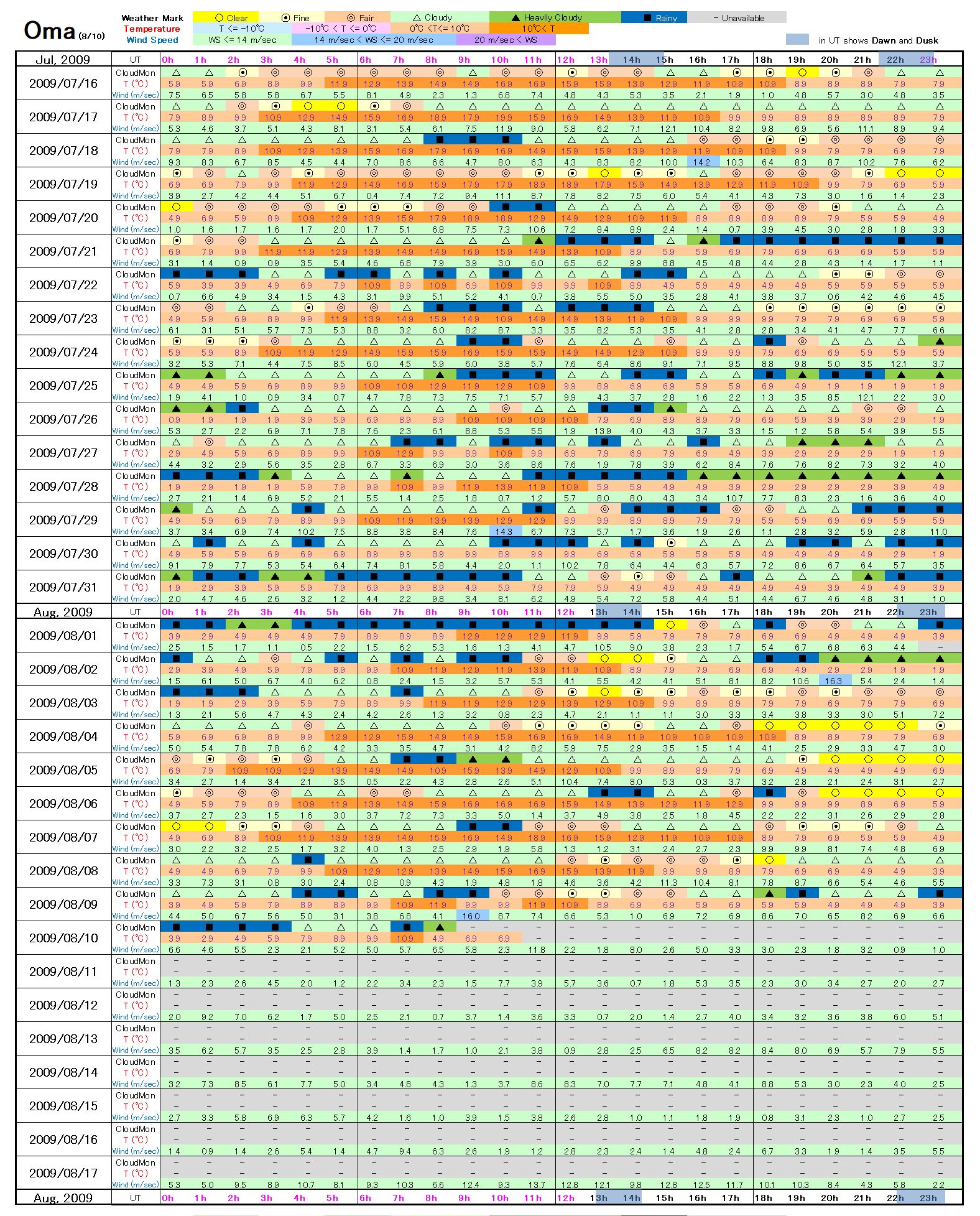

Weather monitoring at Oma during Jan 2009 to Jun 2009. |

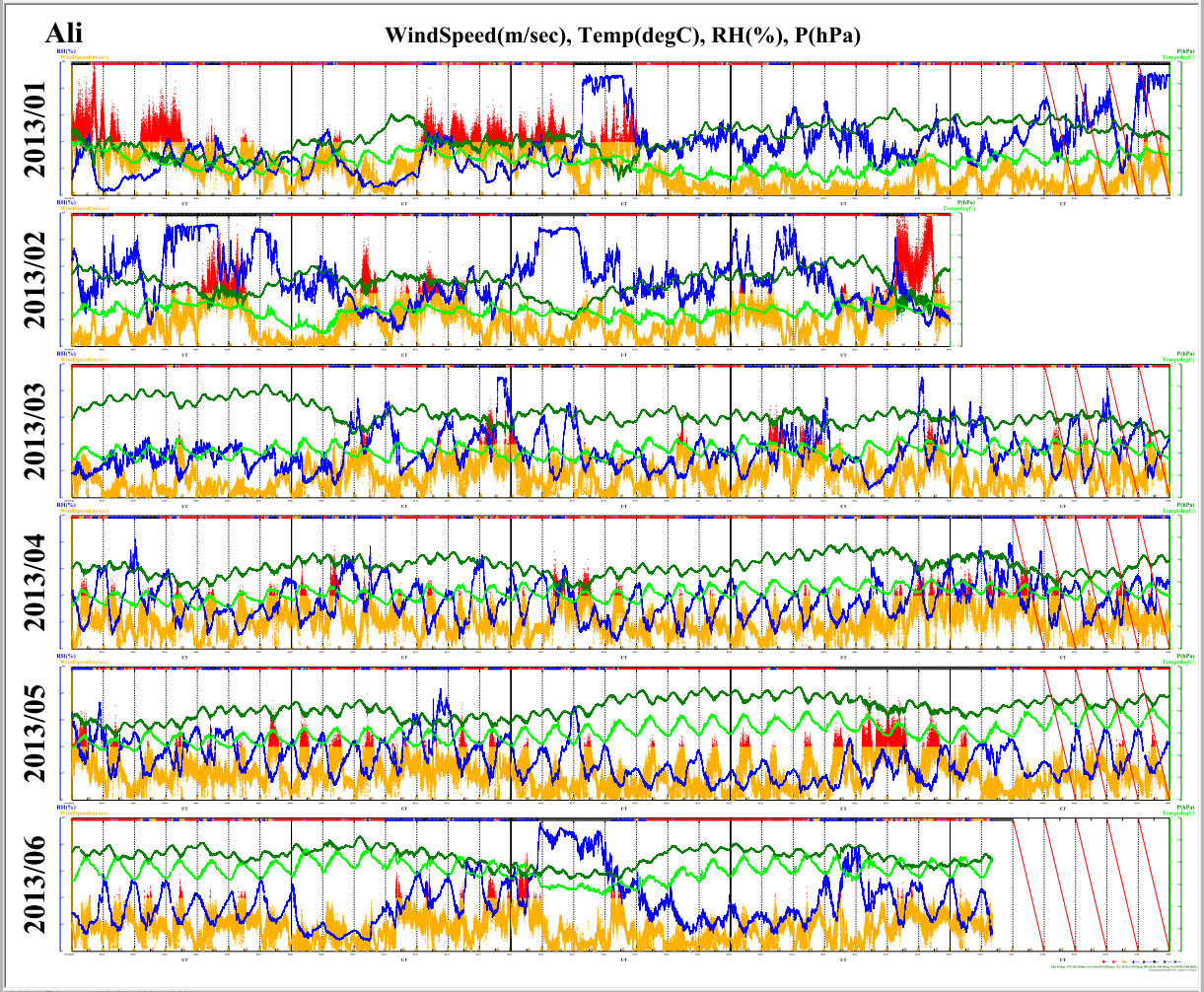

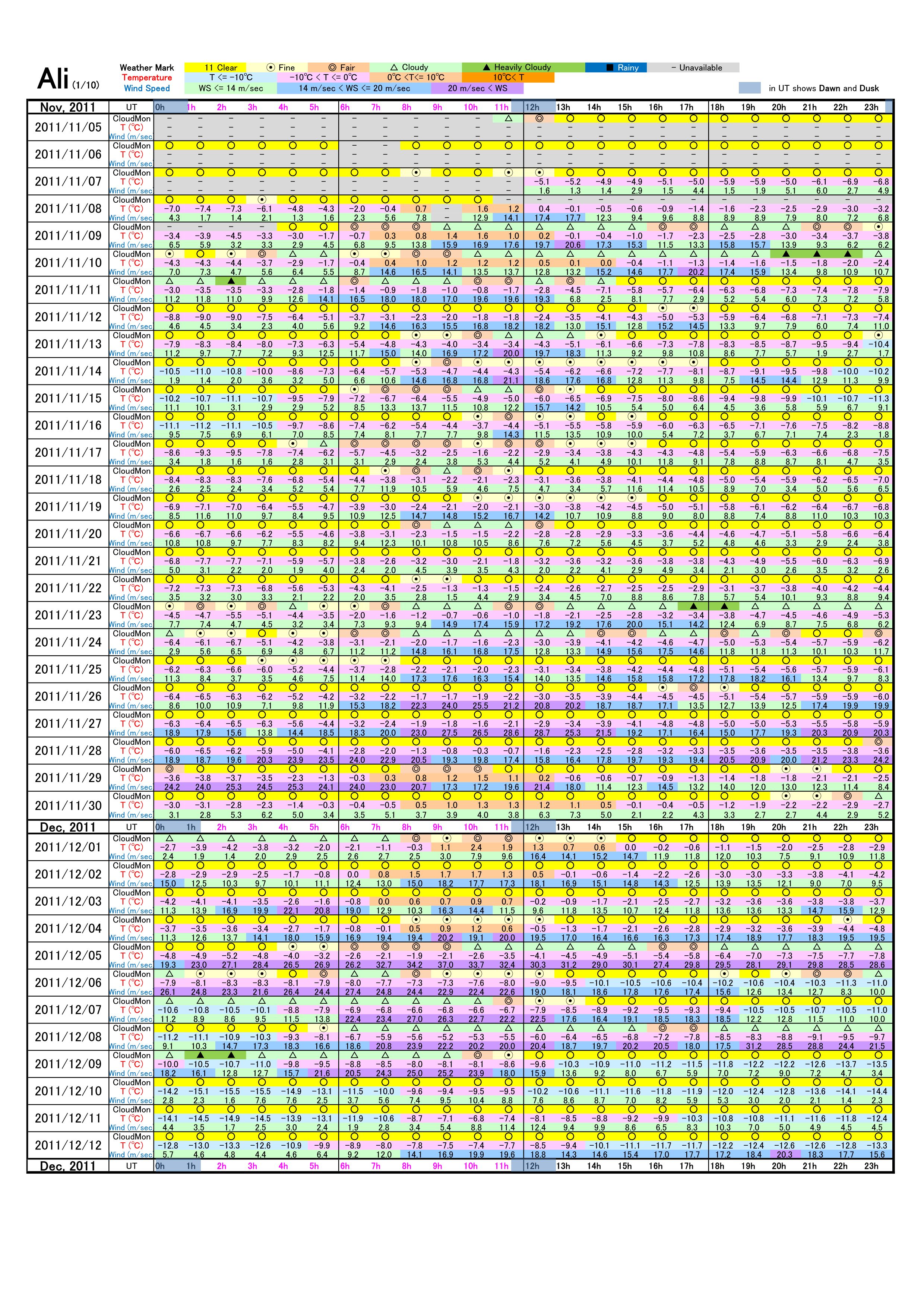

Weather monitoring at Ali during Jan 2013 to Jun 2013. |
||||||||||
|
|||||||||||
-
WRF (Weather Research and Forecasting )
WRF has been used to simulate weather environments around Ali By Dr. Wang/NAOC. Simulated data have been transferred to U-Hiroshima and anaslysed at NAOJ.
Topographic map at Ali and ZoZo Hill in west Tibet/China
Surface Wind Speed map on 2010-01-01, simulted w/WRF by Dr.Wang.
Surface Wind Speed map and Verticval distribution on 2010-01-01, simulted w/WRF by Dr.Wang.
-
JMA-NHM (Japan Meteorological Agency NonHydrostatic Model)
Dr. Naoe has conducted to simulate weather environments around Ali and summarized the results.
Topographic map at Ali abd ZoZo Hill in west Tibet/China
Surface Wind Speed map on 2014-12-14, simulted w/ JMA-NHM.
Time Serial data on simulated Wind at Ali during Jan/2013, simulted w/ JMA-NHM.
|

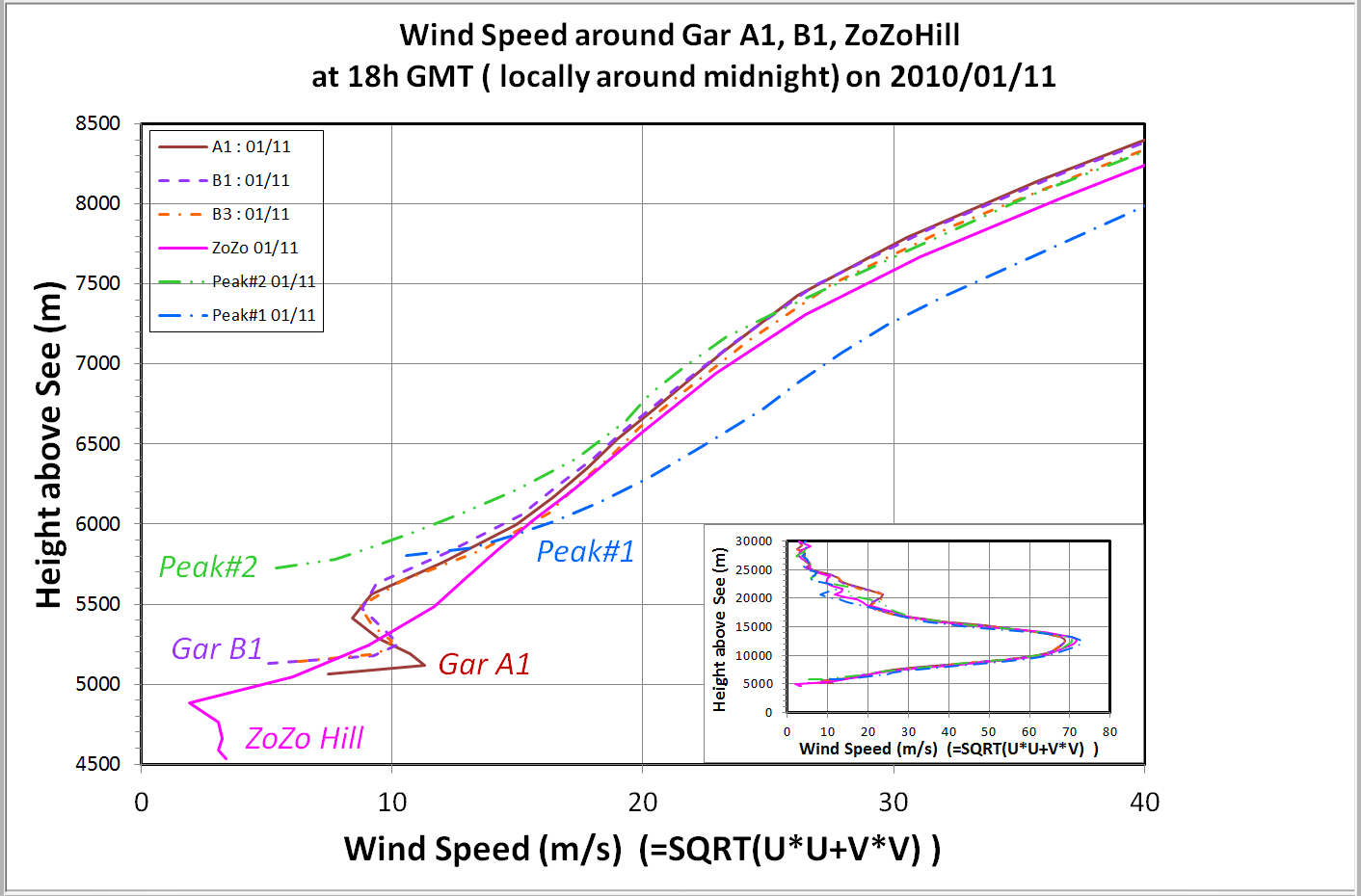

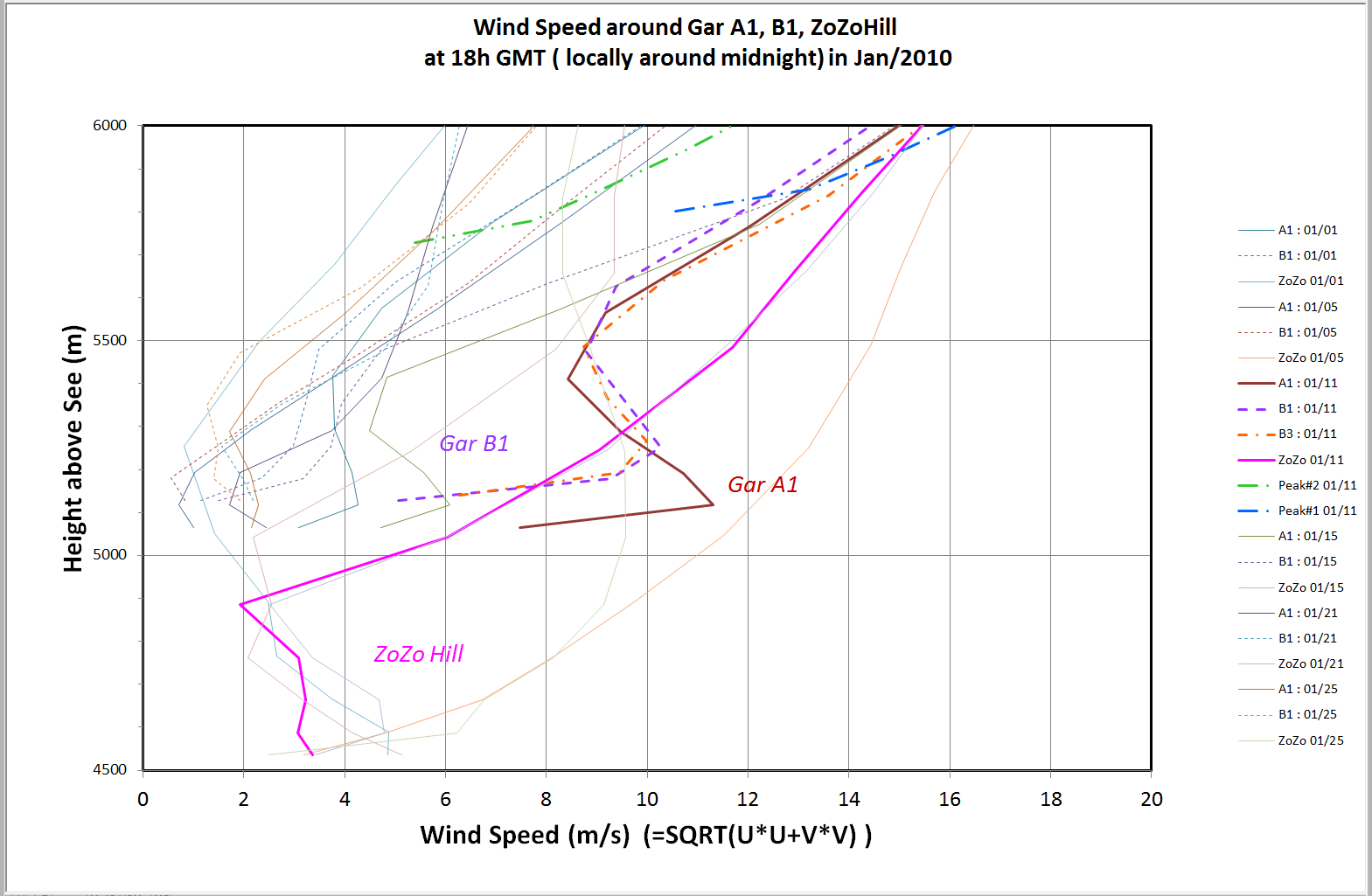

Vertical Wind Speed Profile, simulated w/WRF at Ali and ZoZo Hill | |
Vertical Wind Speed profiles around midnight are shown at site locations A1, B1 at Ali, and ZoZo Hill added with high peaks #1 and #2 near ZoZo Hill. |
Wind speed profiles around midnight in Jan,2010, in which high speeds are shown in upper atmosphere layers. |
|
|

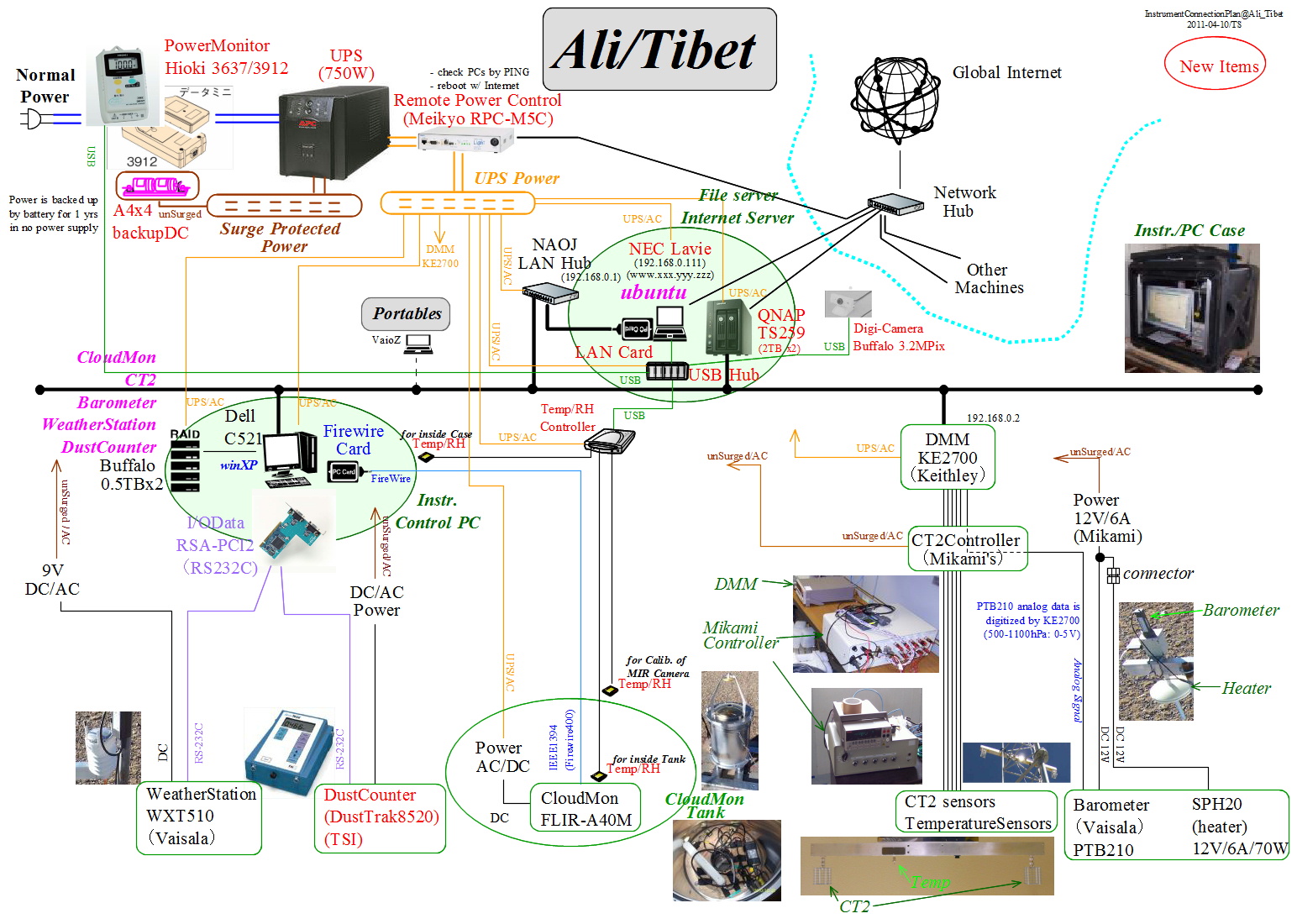

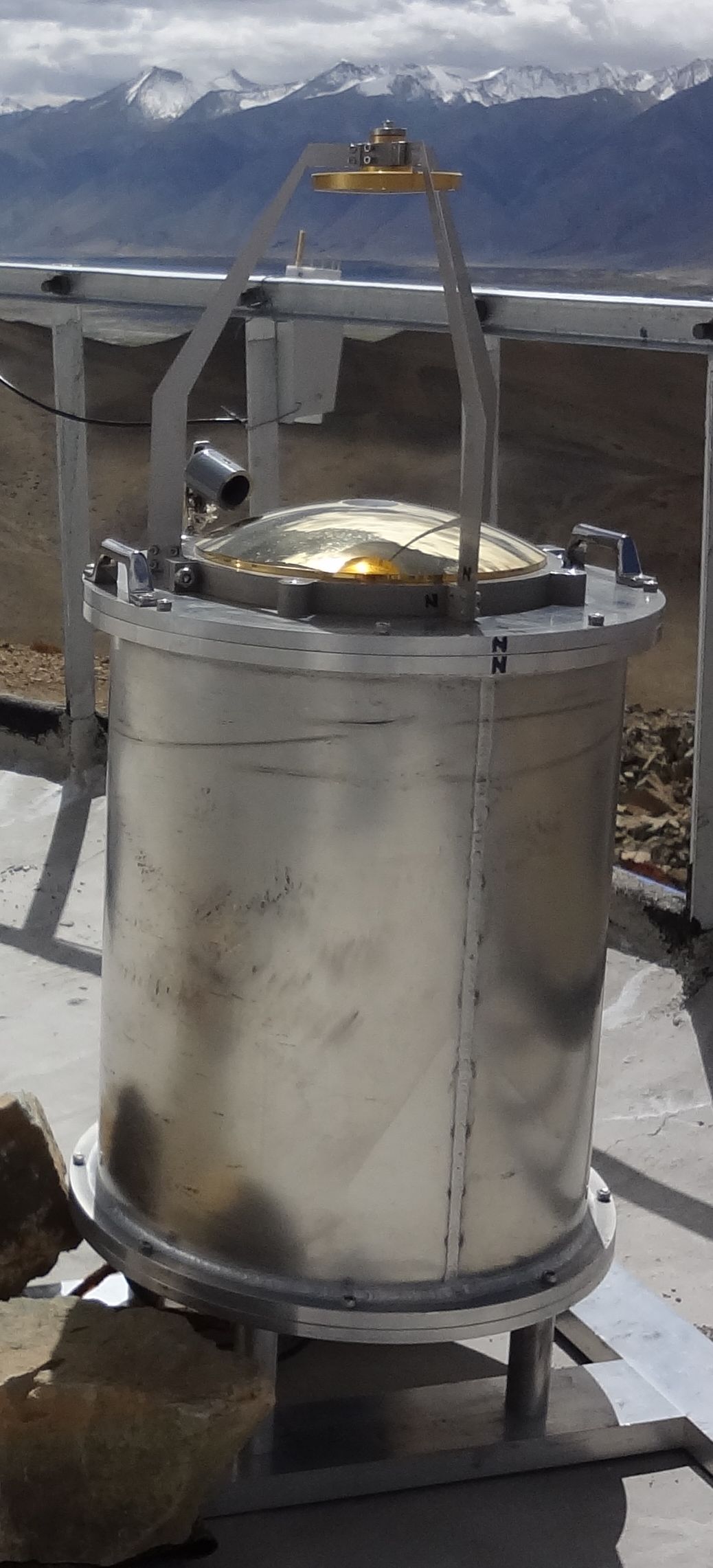

[1] IR Cloud Monitor Camera
(jump to another page) |
|
|
|
|
|
|
|
Structure made at ATC/NAOJ
mid-IR Camera: FLIR-A40M + Ge window (Topcon)
|

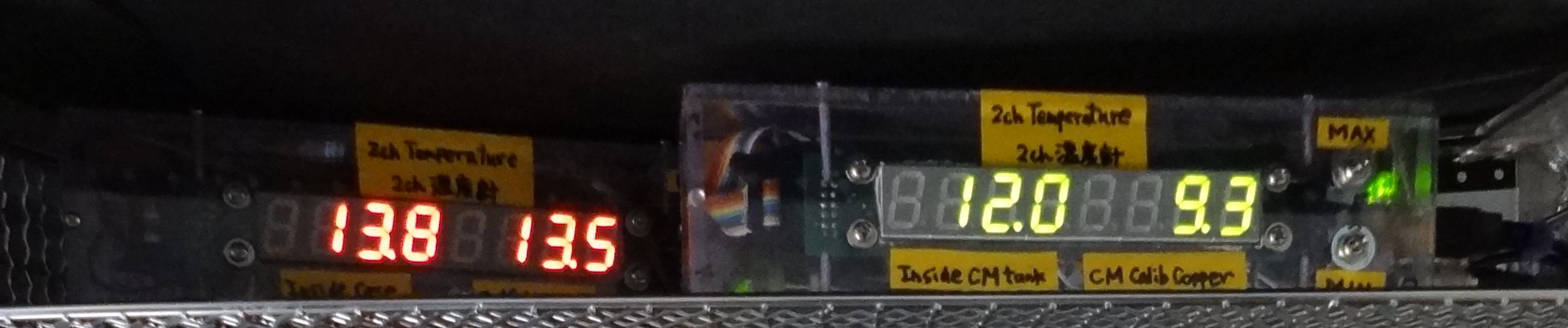

sensors/controllers, made by Mikami-san/NAOJ
DMM: Keithley KE2700
|

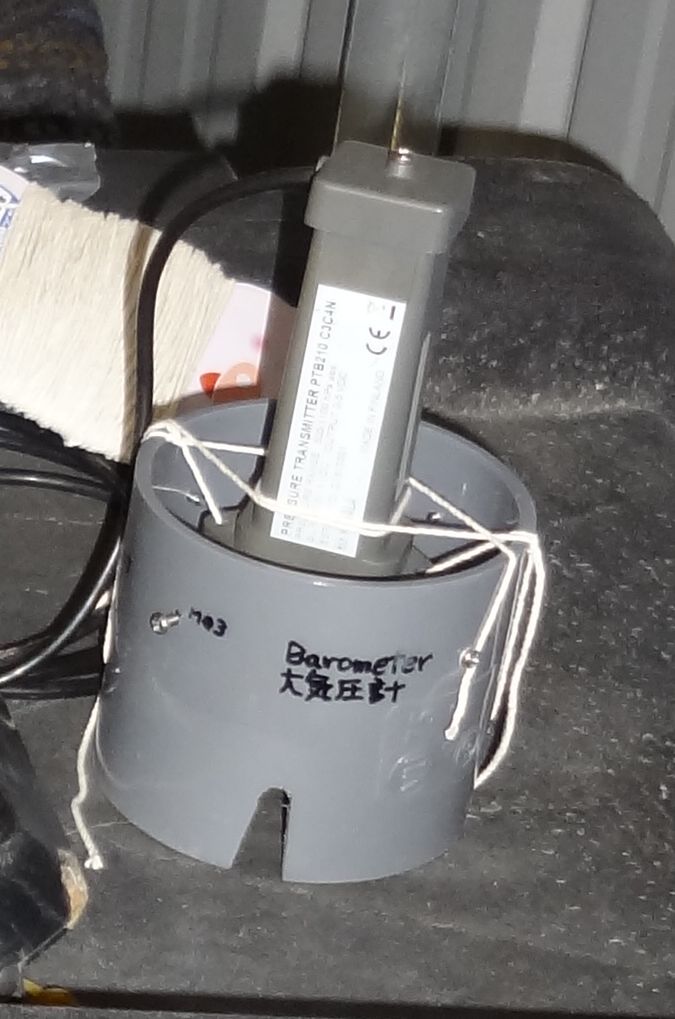

Vaisala PTB210
|

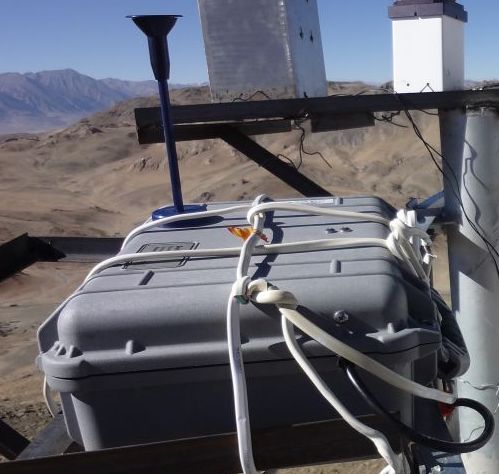

DustTrak8520
|

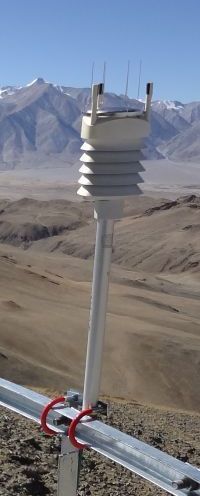

Vaisala WXT510
|
made by T. Sasaki
|
| Ali Oma Karasu |
○ ○ ○ |
X (T and P sensors available) ○ ○ |
○ ○ ○ |
○ ○ X |
○ ○ ○ |
○ X X |
|
Control Software
|
CloudMon
|
ContCT2Dlg
|
WeatherMonitor
|
DustCounter
|
ContCT2Dlg
|
GetTempRH
|
|
|
| Using weather satellite weather data archives, animation of cloud distribution over the west China is composed, where includes Maidanak(Uzbekistan), Hanle(India), Lulin(Taiwan), and OAO(Japan), by clicking HERE |
|
|
|
|

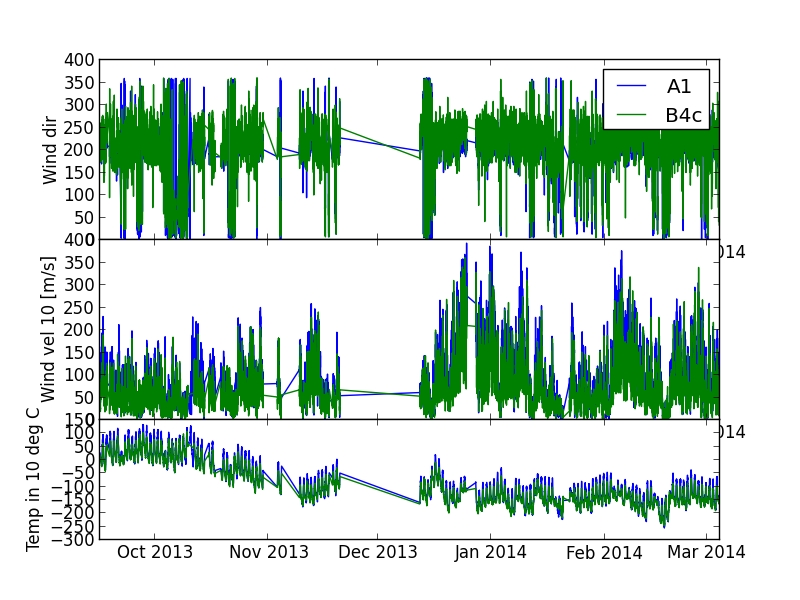

Weather monitoring at Ali A1 and B4c
( to show enlarged image HERE, under beeing protected ) |
|
|
|
|
Presentation (Open and Private) on another page |
|
| ● Astronomical Society of Japan meeting held at Yamagata-U (Sep 11-13, 2014) | |
| ● APRIM 2014, Daejeon, Korea (Aug 19-22, 2014) | |

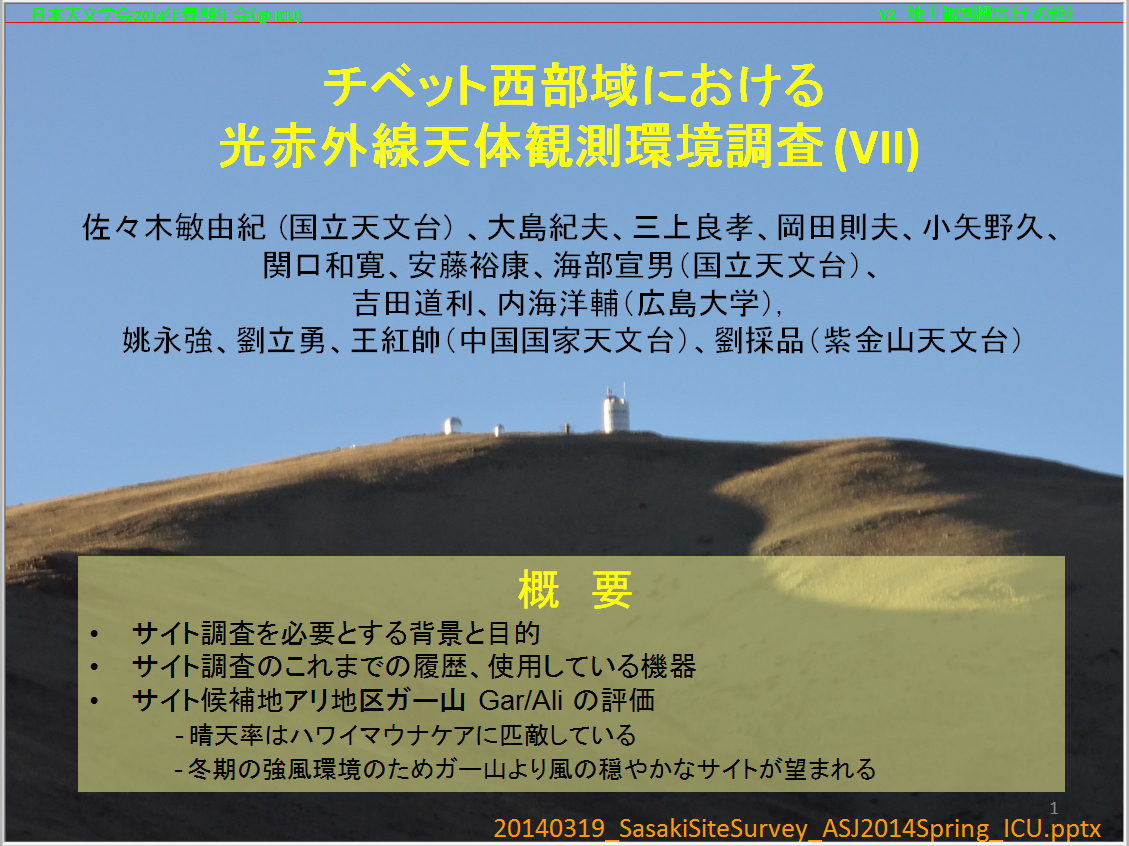

| ● Astronomical Society of Japan meeting held at ICU, Mitaka (Mar 19-22, 2014) | |
| ● EAMA9 conference at Taiwan, 2013 | |
| ● Medium-size Telescope Science Workshop Kunming, 2013 | |
| ● Kyoto 3.8 m Telescope WS ( NAOJ, Mar. 2013 ) | |
| ● Site Survey WS, Beijing 2012 | |
| ● 11th Asian-Pacific Regional International Astronomical Union Meeting 2011, Chiang Mai, Thailand, July 26, 2011 - July 29, 2011 | |
| and more ... |
|
